800Gbps OSFP

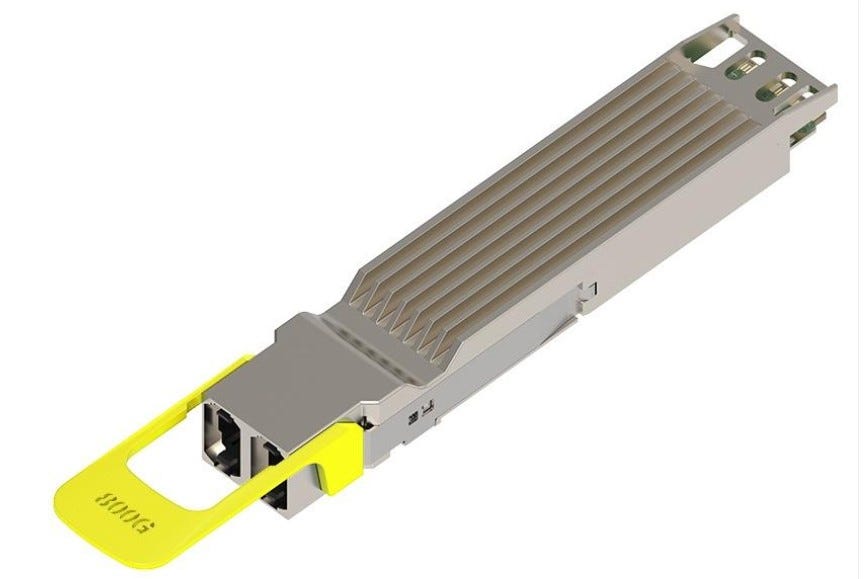

 800Gbps dual-port OSFP 2x400Gb/s two MPO-12/APC single-mode DR8 100m

NVIDIA MMS4X00-NS is an InfiniBand and Ethernet 800Gb/s 2x400Gb/s dual-port OSFP, DR8 single-mode, parallel, 8-lane transceiver using two 4-lane MPO-12/APC fiber optic connectors, each connector The speed is 400Gb/s. Parallel single-mode, data center up to 8 lane (DR8) design uses 100G-PAM4 modulation, with maximum fiber length of 100 meters using 8 single-mode fibers. The 100 meter length assumes two optical patch panels in the link.
The dual-port DR8 transceiver is a key innovation from NVIDIA, featuring two internal transceiver engines that enable 64 400Gb/s ports in a 32-OSFP cage Quantum-2 switch. Spectrum-4 switches are available in 32 or 64 cages, supporting 64–128 400G ports.

Quantum-2 and Spectrum-4 switches require a top-finned OSFP enclosure for additional transceiver cooling. The main application of the MMS4X00-NS is to connect two switches together up to 100 meters long.

Flat top version available for liquid cooling and DGX H100 Cedar7 system links.
The transceiver combinations are guaranteed to work in NVIDIA’s end-to-end InfiniBand systems and undergo rigorous production testing to ensure a great out-of-the-box installation experience, performance, and durability.

Main features
800G DR8 single-mode transceiver
8-channel 100G-PAM4 electrical modulation
Two MPO-12/APC fiber optic connectors
Two ports 4 channels 100G-PAM4 optical modulation
Supports two pass-through 400Gb/s or two 200Gb/s 1:2 splitter optical cables
Fin Top OSFP for Air Cooled Switches
Flat top OSFP for DGX H100 or liquid cooling
1310nm EML laser
Reachable range: 100m
Power 17 watts
1.5W low power sleep mode
Single 3.3V power supply
Class 1 Laser Safety
Hot-swappable and RoHS compliant
Complies with OSFP msa.org requirements
Compliant with CMIS 4.0
Case temperature range 0°C to +70°C

Application areas
For use with Quantum-2 and Spectrum-4 air-cooled switches, liquid-cooled and DGX-H100 system-to-switches, ConnectX-7 and BlueField-3 DPUs
