100Gbps PAM4 DWDM QSFP28

 100Gbps PAM4 DWDM QSFP28 function

Hot pluggable QSFP28 MSA form factor
Up to 80km reach for G.652 SMF with transport white box
Single +3.3V power supply
Temperature Range 0 to 85°C
Transmitter: Cooled EML 2*27.5Gbaud/s DWDM TOSA
Receiver: 2*27.5Gbaud/s Pin-PD ROSA
4*25G CAUI4 electrical interface
Integrated SFEC with high coding gain
PAM4 modulation format on 100GHz ITU DWDM wavelength grid compatible
Dual CS adaptor
Compatible with RoHS6

100Gbps PAM4 DWDM QSFP28 Application
High bandwidth connectivity for Data Center Interconnection
100G Ethernet Metro-Access over DWDM
P to P Access Network

Tx: Cooled EAM DFB-LD
Pout: -1 ~ +4dBm
Rx Sen.: -13 dBm @BER 4E-3

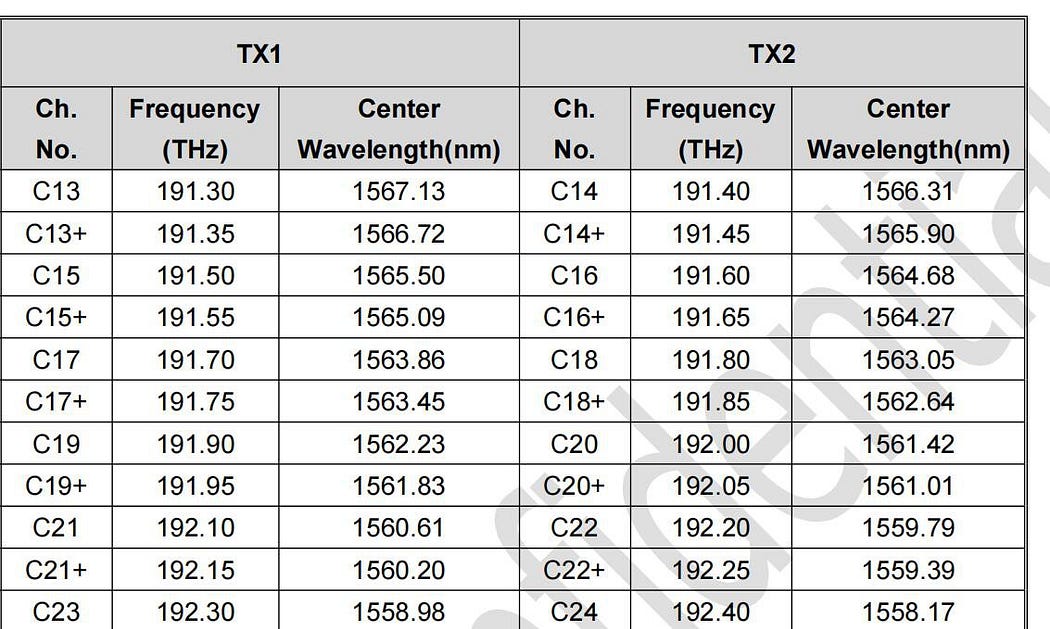

The two channels of the transceiver meet above wavelength table. And other channel wavelength

configurations are acceptable for customize design.

All the specification is designed by single wavelength.

HTF also provide the Coherent 100G/200G/400G color DWDM transmission solution. Help you expand the network capacity easily. Any question, welcome to contact HTF. www.htfuture.com
