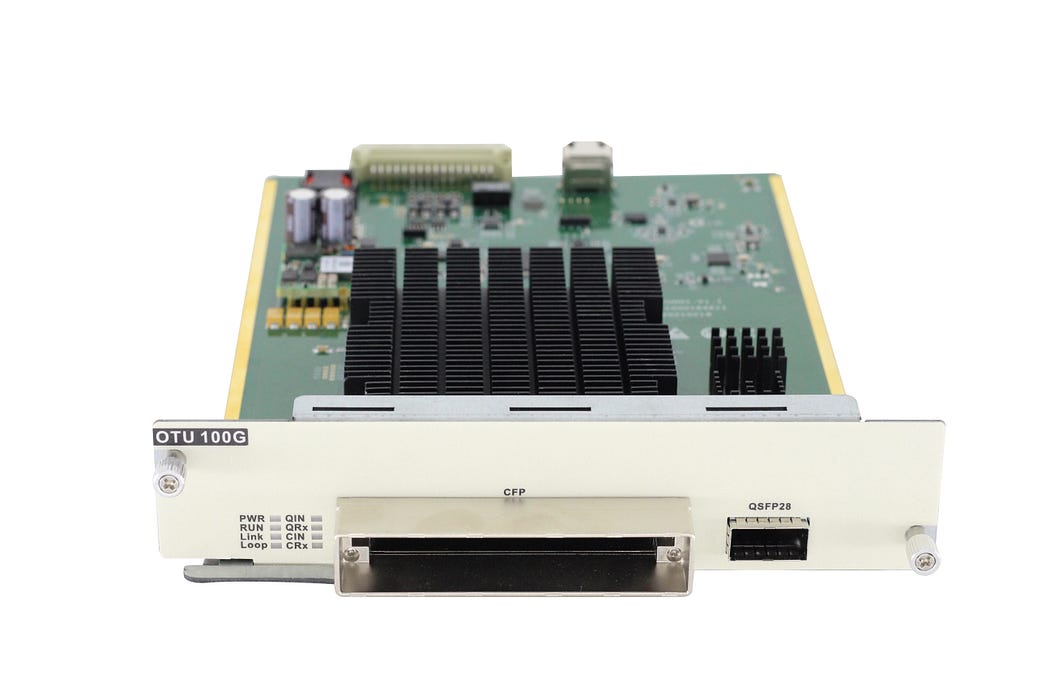

The 100G OTN Transmitter supports one QSFP28 client interface and one CFP line-side interface to support single-channel 100Gbps large-grain data transfers. The industry’s most advanced coherent technology and FEC forward error correction coding technology enable high-capacity, long-distance high-performance transmission.
l Media conversion
l Signal repeating
l Lambda conversion
l Support single channel 100Gbps
l Client side: QSFP28 module
l Line side: CFP 100Gbps coherent module;
l Ultra-long-distance transmission: FEC technology can be used to achieve 1500km transmission without regeneration
l Large dispersion tolerance: 40000ps.nm
l Support port loopback test
l Support 80 channel wavelength tunable
HTF 100G Transponder includes integrated OTN FEC capability on the transponder, allowing operation over longer distances or in applications requiring ultra-low bit error rates.
The 100Gbps Transponders from HTF offer a choice of pluggable QSFP28 Client side optics and CFP Coherent DWDM line side optics based on distance and capacity requirements.

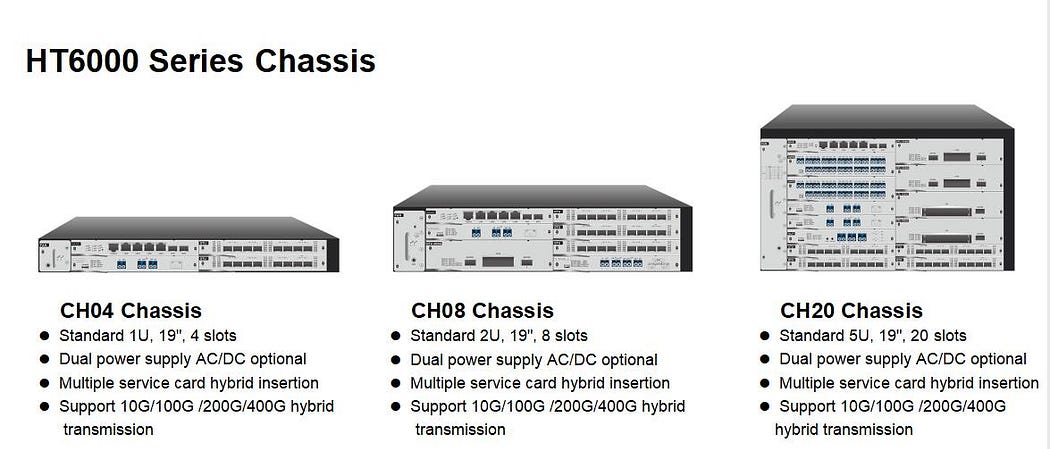

The Coherent DWDM Optics are the most technologically advanced and offer benefits on dispersion management, signal reach, and other optical properties. Coherent DWDM Optics can greatly increase the capacity and reach of an optical network, The 100G Transponder models fit for HT6000 Series CH04, CH08, CH20 Chassis.
If have more question, welcome to contact Ivy from HTF. ivy@htfuture.com www.htfuture.com
