200G CFP2-DCO

 The CFP2-DCO pluggable transceiver is a CFP2 MSA-compliant digital coherent optical module designed for line-side trunk DWDM data center interconnect (DCI), metro carrier, and regional/long haul applications.

The 100 and 200 Gbps per wavelength CFP2 digital coherent optical transceiver support 100 Gbps PM-QPSK and 200 Gbps PM-8/16QAM transmissions.

200G CFP2-DCO Features
Supports 100 Gbps DP-QPSK and 200 Gbps DP-8QAM/DP-16QAM modulations
Flexible client side interfaces supporting: OTL4.4 signaling for OTU4 frames with G.709 FEC and OTU4/ODU monitoring; CAUI-4 signaling for 100G Ethernet with RMON counter module
Interoperable staircase FEC and low latency 15% soft decision-FEC support
Support for Nyquist spectral shaping and digitally compensated CD and PMD
Flex-grid DWDM support with gridless tuning (100 MHz resolution)
Embedded PRBS generator/analyzer for line and client interfaces and loopback of incoming and outgoing traffic
Standard CFP2 form factor module outline (106 x 41.5 x 12.4 mm)
Operating case temperature from -5°C to +70°C
Single 3.3 V supply
Power consumption below 19.5 W assuming 200G DP-16QAM with 15% overhead SD-FEC

200G CFP2-DCO Applications
100/200G loss-limited point-to-point edge unamplified coherent transmission
100/200G OSNR-limited metro, regional, and long haul coherent transmission with link

200G CFP2-DCO Compliance
CFP MSA IEEE802.3 Clause 45 MDIO
104-pin P2 MSA-compliant connector
RoHS 6/6

HTF can help you design 200G DWDM coherent solution and save cost. Ivy from HTF is ready and happy to asssit you. ivy@htfuture.com +8618123672396

What is 25G WDM Transponder?

 25G Transponder (OEO) service card launched by HTF, supports four types of service access with 16 to 32G rates. Its main function is to finish the 2R re-generating and re-shaping of any 4-channel signals under any protocol within the rate of 25 Gbit/s to be accessed, and then convert them to optical signals of a standard DWDM wavelength or standard CWDM wavelength, so that the multiplexing unit can conduct WDM for optical signals of different wavelengths and also achieve the inverse process of the above process. It’s applicable to the wavelength division transmission solution for 25G rate services, and compatible with 16G or 32G FC.

The 25G WDM Transponder Supports Eight Flexible SFP28/SFP+ ports Suitable for Wavelength Conversion and the Transferring Application.
The 25G WDM converter can be used as a transponder or as a repeater and regenerator. It provides a range of options for repeating optical data signals, converting them to other optical or electrical formats, or combining multiple fibers onto a single fiber.

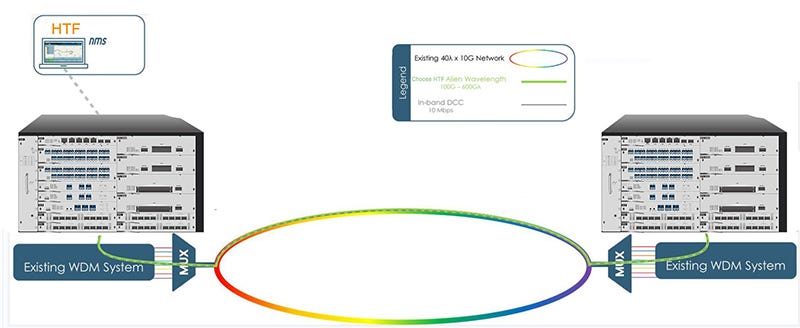

HTF Series provides cost-effective and flexible WDM solutions. It has a variety of optical layer boards and provides excellent optical performance, and can be applied to DWDM dual-fiber/DWDM single-fiber/optical cable monitoring systems, to meet the diverse needs of scenarios.

Transport 10G to 28G Ethernet, STM64/10GE/25GE/FC16/FC32.
Support Standard MSA Pluggable SFP+ and SFP28
Remote Management with Monitor Online Network Management Software
Applied for Metro 25 Gigabit Ethernet Connectivity, Cable Landing Service Extension, etc.
Functions as a Fiber Mode Converter, a CWDM or DWDM Transponder, or a Fiber Repeater
4 Independent ITU Standard-based WDM Transponder
25G Transponder (OEO): 8*SFP28

More details, welcome to contact HTF team. +8618123672396

10G Tunable 80km SFP OTP10T_AL Compatible

 10G Tunable 80km SFP OTP10T_AL compatible

Supports 9.95Gb/s to 11.3Gb/s bit rates
Monolithically integrated full C-band tunable transmitter and APD receiver
50 GHz ITU channel spacing with integrated wavelength locker
Up to 80km on 9/125µm SMF
Hot-pluggable SFP+ footprint
Compliant with SFP+ MSA with LC connector
Metal enclosure, for lower EMI
RoHS compliant and lead-free
Support Digital Diagnostic Monitoring interface
Specifications compliant with SFF-8472 V11.3& SFF-8690 V1.4
Single +3.3V power supply
Case operating temperature

10G Tunable 80km SFP OTP10T_AL compatible Application:

DWDM 10GBASE-ZR/ZW & 10G Ethernet
DWDM SONET OC-192&SDH STM-64
10G Fiber Channel
